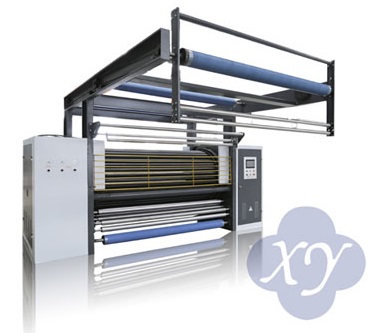

MA 168-36 Raising Machine Belt type

Application :

MA 168-36 is used for raising blankets, woolen fabric, knitted fabric, warp knitted fabric etc.

Main Features :

  • This machine adopts man-machine interface, PLC control, multi-frequency converter speed regulation at the same time.
  • The cloth speed, tension, cylinder and hair roller speed can be steplessly changed.
  • Bearing enlargement, strong bearing capacity, tension under belt, bridge wheel enlargement, long belt life.
  • This machine is equipped with fast-changing belt system, multi-functional distribution.
  • When the machine stops, the belt is completely relaxed, which is convenient to clean up the broken cloth, safe and efficient.
  • It can store 500 technological parameters with simple and efficient operation.
  • It has the functions of zero start, automatic guide and fault alarm and diagnosis.
  • Can be multiple online, online can be fully synchronized.

Specifications :

Installed power 40 kw
Actual power consumption 24 kw
Adjustable production rate 5-30 m/min
Needle roller number 36
Needle roller diameter φ 70
Cylinder speed 60-90 rpm
Cylinder diameter φ 1120
Transmission mode Belt drive
Touch screen control yes
Effective gate width - 2000mm 4000x4000x3050mm
Effective gate width - 2200mm 4200x4000x3050mm
Effective gate width - 2500mm 4500x4000x3050mm
Effective gate width - 2800mm 4800x4000x3050mm
