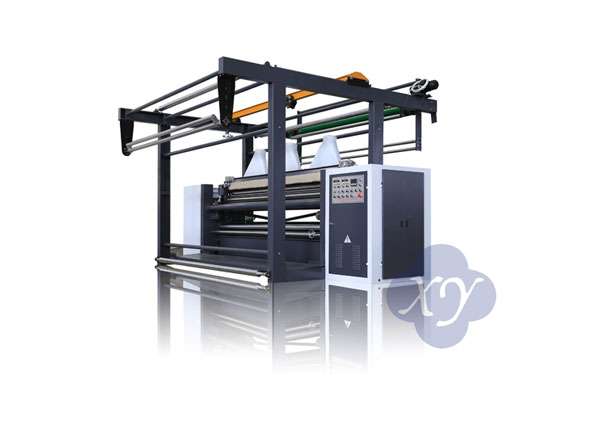

JM24 Shearing Machine
Application:
Finishing on the surface, raised woven fabrics, raised knitted fabrics, wool, velvet, towel, blankets, cotton, plush,sofa material, etc. Installed with Germany Heusch blade and shears.
Main Features :
- German Heusch circular blade, Flat blade.
- Installed with Dan foss inverter to control fabric speed and tension, more stable, easy to manipulate.
- Equipped with Pneumatic device, which will automatic lift blade and lift linoleum. Easy to clean and sharpen the blade.
- Metal detector installed. Automatic error alarm. Safe and convenient to operate.
- This machine is equipped with blade lift device, which allows stable fabric spreading, and adjustment accuracy of up to 0.01mm.
Specifications :
| INSTALL POWER | 14.68 kw |
| MAXIMUM PRODUCTION SPEED | 45m/min |
| SHEARS INSTALLED | 24 |
| DIAMETER OF SHEARING CYLINDER | φ 183mm. |
| WORKING SPEED | 900rpm. |
| DIAMETER OF DRIVING ROLLER | Φ169mm. |
| ROTATION DIRECTION | CLOCKWISE |
| MACHINE WEIGHT | 3000kg |
| OVERALL DIMENTION-2200mm. | 4380x4310x3150mm. |
| OVERALL DIMENTION-2500mm. | 4680x4310x3150mm. |
