Steam Setting Machine :

For Steam Setting of Circular Knitted Fabrics



Features :

  • DNS steam setting machine is designed for sperading and seting of fabric width.
  • It corrects twisted condition of knitting loops,and widen fabric width by pressing fabric surface and softend through steam spray on the fabric.
  • Crease marks can be minimised by non-woven fabric on the roller surface.
  • At the steam setting section, upper and lower roller will be heated.
    So,it gives good effect on fabric.
  • The Machine comprises of over feeding section,steam section,folding section and electronic control panel.

Specification :



Working width
 1300mm.
Roller width
 1400mm.
Main motor 1.5 kw
Working speed
 4-40 m/min.
Steam capacity
 120 kg/h
Air pressure
 3-5 kg /cm²
 Packing dimension
 6.3CBM
Gross weight
 2000 kg

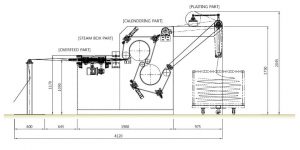

Layout Drawings :
