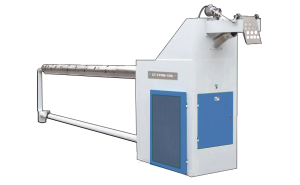

Tube Reversing Machine For Textiles

Technical Parameters



  • Pneumatic type cloth turning.
  • High speed turning: 200 mtr./min.
  • Turning over tube Length: 5000 mm.
  • Air Pipe Diameter: 270mm.
  • Fan Power: 11 KW./ 380 V
  • Air Pressure: 8000 Pa
  • Dimensions: 8540 mm. x 1020mm. x 2660mm.

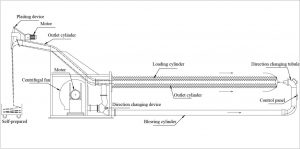

Layout Drawing:

Technical Features:

  • Suitable for : All kinds of Tubular Knits Fabric
  • Flow of Air smoothly due to modern design
  • Long cloth tube design, gives more efficiency
